A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Thermostat
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
temperature and water flow control, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostatic mixer handle
water flow control with stop outlet
installation type: concealed installation

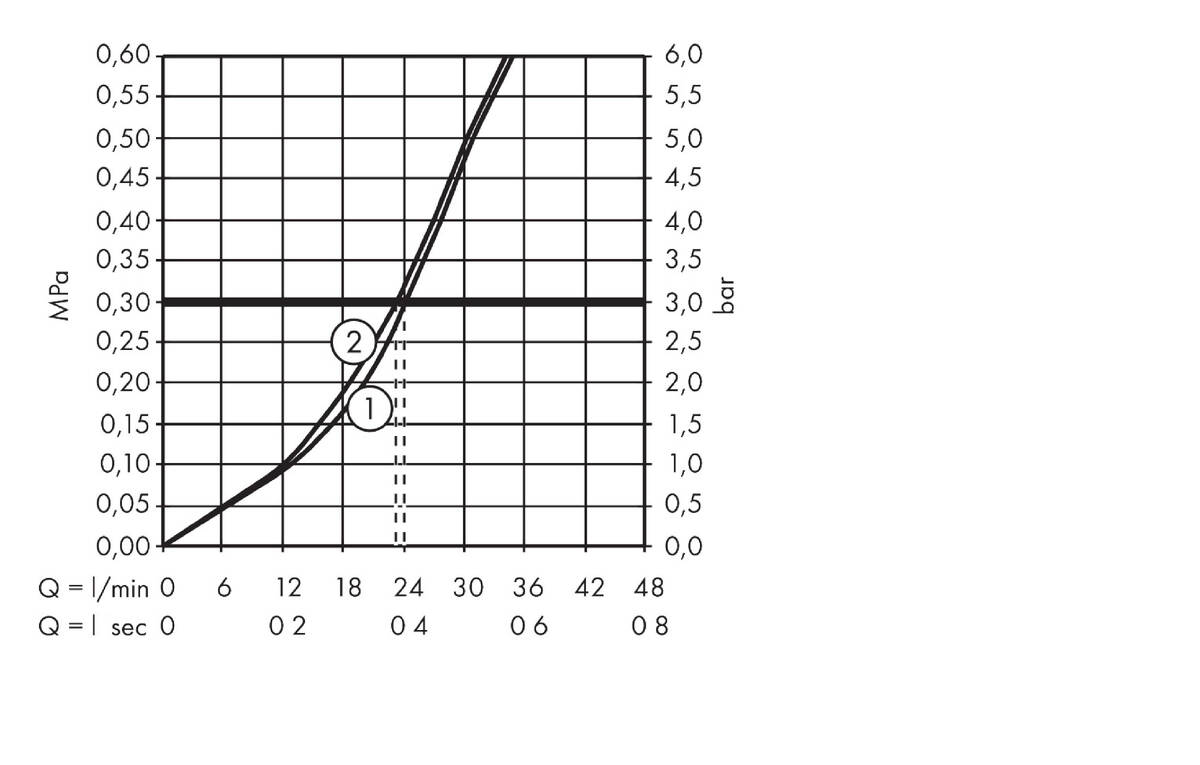

maximum flow rate at 1 bar: 11,5 l/min
flow rate upper outlet: 27 l/min
flow rate lower outlet: 27 l/min
flow rate by simultaneous use of all outlets: 34,8 l/min
maximum flow rate at 3 bar: 27 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
flat escutcheon for more space in the shower
escutcheon can be aligned by +/- 3°
easy installation due to pre-assembled outlet block
handles always at the same height regardless of the installation depth of the basic set
