The Select push button simplifies daily bathroom routines, as one simple push is all it takes for water to flow or stop. When showering, the user-friendly button can change the spray type or switch from the overhead to the hand shower.
A temperature limitation that ensures safe showering pleasure at all times. The function prevents too hot water from coming out of the shower. The scald protection is a big safety plus, especially for children or people with restricted mobility.
Thermostat
Thermostat
Always constant water temperature
Safe and reliable: The thermostat with integrated temperature control continuously monitors the water temperature while showering or bathing. It reacts quickly to changes in pressure and keeps the temperature comfortably at a constant level. For pleasant water enjoyment at all times.
Water flow control
Water flow control
For mindful use of water
The amount of water can be precisely adjusted via a control dial on the water-saving thermostat control, enabling you to use less water every day. Ideal also for children, who usually prefer gentle flow of water anyway.

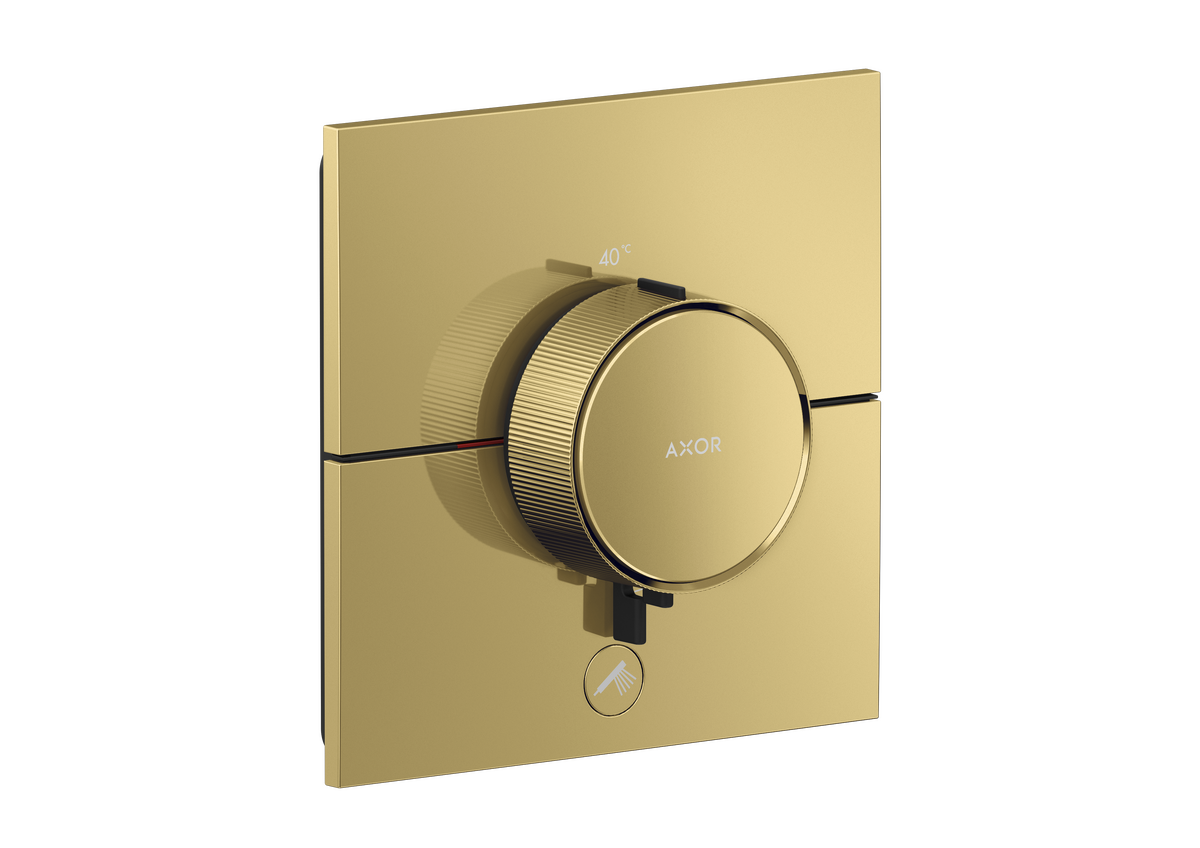

Select push button on/off control for 1 outlet, precise temperature control thanks to vertical handle structure and haptic feedback from the thermostatic mixer handle
water flow control with stop outlet
thermostatic mixer cartridge, Start/stop valve to operate the outlets
installation type: concealed installation
flow rate upper outlet: 23 l/min
flow rate lower outlet: 23 l/min
maximum flow rate at 3 bar: 32,8 l/min
min. operating pressure: 1 bar
max. operating pressure: 10 bar
flat escutcheon for more space in the shower
escutcheon can be aligned by +/- 3°
easy installation due to pre-assembled outlet block
handles always at the same height regardless of the installation depth of the basic set
Safety stop at 40 °C
temperature limitation adjustable
the thermostatic mixer offers the possibility for thermal disinfection
material button: metal
material handles: metal
connection type: basic set iBox universal 2 (# 01400180)
thermostatic mixer is delivered with buttons hand shower, bath tub, whirl, body jet and On/Off
